AVMap
AVMap G7 Ezy Farmnavigator
- PGM SKU:
- PGM-00007
- MPN:
- G7Ezy_Farmnavigator
- Manufacturer:
- AVMap
€1,845.00inc. VAT
€1,500.00 ex. VAT (VAT 23%)
Low stock3 available
7 inch HD GNSS guidance display with multi-touch, section control support, and rugged IP5-rated housing for agricultural field work.
Delivery
Dispatched from our Irish depot. We currently deliver only within the Republic of Ireland. Options and costs are calculated at checkout.
Technical description

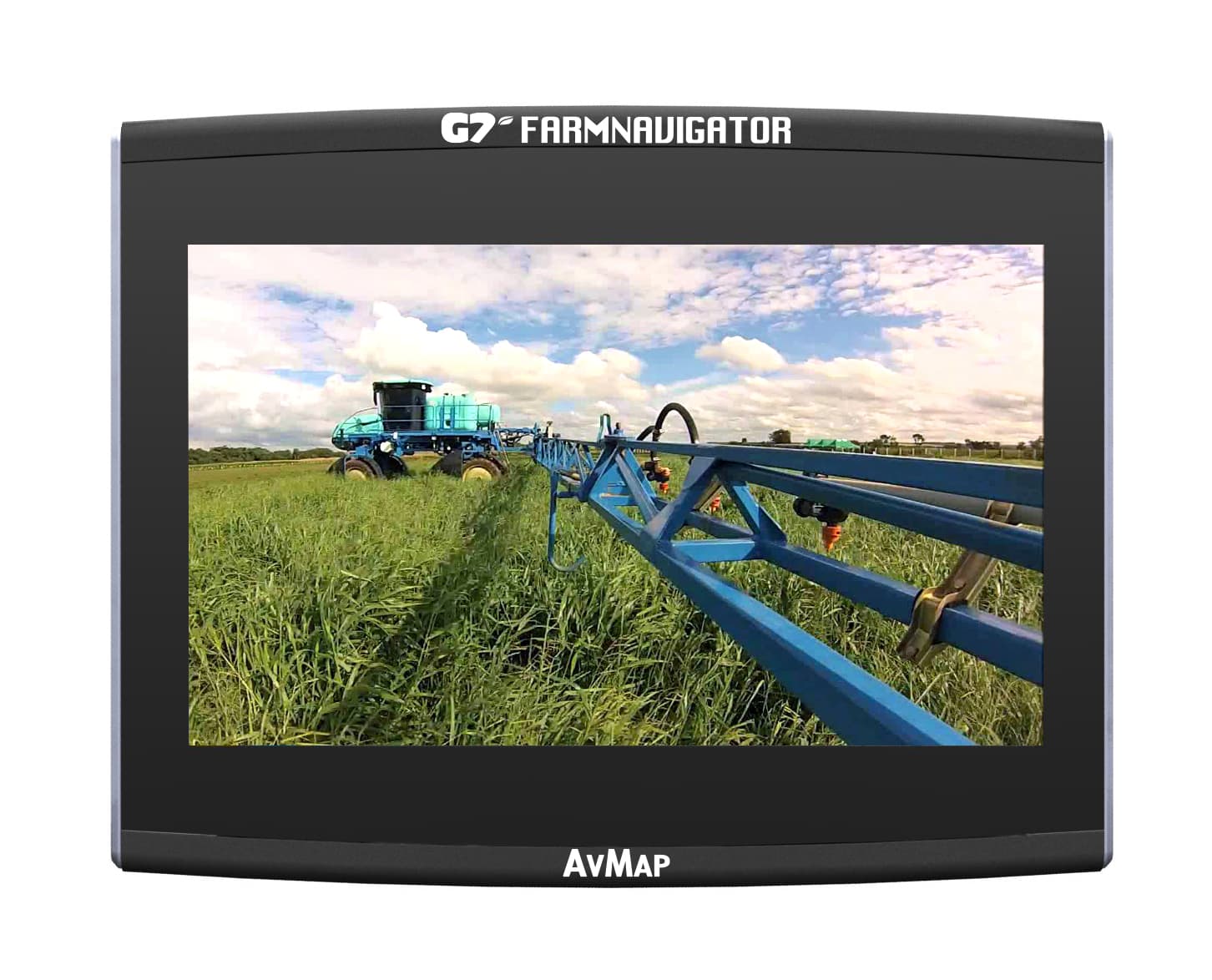

The AVMap G7 Ezy Farmnavigator is an affordable and easy-to-use satellite guidance display for intelligent agriculture. It features a 7 inch bonded LCD (1024x600, 1000 nits), capacitive multi-touch operation, and compatibility with section-control workflows. Designed for field conditions, it supports dust and water resistance and includes accessories for straightforward installation.
Specifications
| Display | 7 inch bonded LCD |
|---|---|
| Resolution | 1024x600 px |
| Brightness | 1000 nits |
| Touch screen | Capacitive multi-touch |
| GNSS support | Built-in WAAS / EGNOS / MSAS |
| GPS antenna | External u-blox antenna |
| Supply voltage | 10-35 Vdc |
| Power consumption | 820 mA max @ 12V |
| Serial ports | 2 |
| Operating temperature | 0 to +55 C |
| Storage temperature | -30 to +80 C |
| Ingress protection | IP5 |
| Dimensions | 188 x 146 x 33 mm |
| Weight | 640 g |
